Metro trains are a heavily used urban public transport system, serving large numbers of passengers daily and requiring gangways that support both capacity and comfort. Dellner metro gangways feature wide, bright, and spacious passages with enhanced sound insulation and smooth side walls for standing passengers, while also being designed for durability and low maintenance to help reduce lifecycle costs for operators.
Non articulated gangway
2 piece gangway, coupler supported
Fire rating: EN 45545 HL2 or HL3, NFPA
Acoustic rating: EN16286-2, 33dB to 38dB
Interior system:
Sliding aluminium segmented side wall panels
Ceiling system:
Sliding aluminium segmented ceiling panels
Floor system:
Stainless steel fixed treadplates
Aluminium segmented flexible treadplates
Frame attachment:
Bolted frame connection, exterior connection
Centre frame latching connection, quick release
Bellows:
Outer bellows, signal corrugated

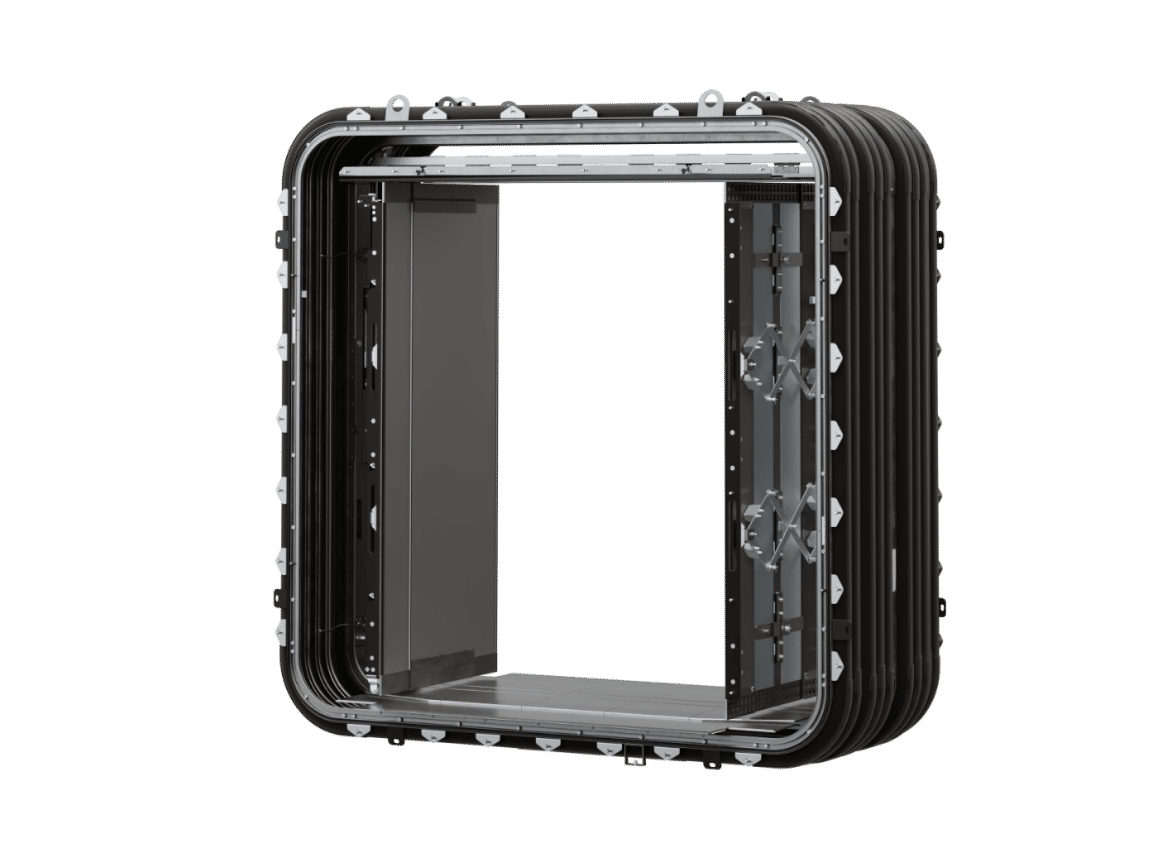

Non Articulated, 2 Piece, Single Corrugated Bellows - Sliding Panel
